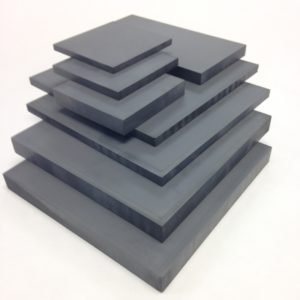

Sintered Silicon Carbide Tiles

china ceramics sintered silicon carbide (SiC) tiles offer superior material characteristics to standard wear tiles, making them the perfect choice for protecting your equipment and products. Sintered Silicon Carbide Wear Tiles provide the best wear and corrosion resistance of any advanced ceramic material in the marketplace. It outperforms all other ceramic materials when your application is facing severe corrosion, temperature, and wear challenges.

Sintered Silicon Ceramic Tile - Characteristics & Properties

Corrosion Resistance

Wear & Abrasion Resistance

Temperature Strength

Creep Resistance

Thermal Shock Resistance

Sintered Silicon Ceramic Tile - Sizes and Tolerances

Looking for sintered silicon carbide tiles? We’ve got you covered! Browse our inventory below and contact us to place an order today!

[su_table]

Tile Size	Tolerances
4” x 4” x 0.200” Thk	+/- 0.030 L & W, +/- 0.010” Thk
4” x 4” x 0.225” Thk	+/- 0.030 L & W, +/- 0.010” Thk
4” x 4” x 0.250” Thk	+/- 0.030 L & W, +/- 0.010” Thk
4” x 4” x 0.275” Thk	+/- 0.030 L & W, +/- 0.010” Thk
2” x 4” x 0.290” Thk	+/- 0.030 L & W, +/- 0.010” Thk
4” x 4” x 0.300” Thk	+/- 0.030 L & W, +/- 0.010” Thk
4” x 4” x 0.315” Thk	+/- 0.030 L & W, +/- 0.010” Thk
4” x 4” x 0.400” Thk	+/- 0.030 L & W, +/- 0.010” Thk
2” x 2” x 0.125” Thk	+/- 0.015 L & W, +/- 0.010” Thk
2” x 2” x 0.187” Thk	+/- 0.015 L & W, +/- 0.010” Thk
2” x 2” x 0.250” Thk	+/- 0.015 L & W, +/- 0.010” Thk
2” x 2” x 0.350” Thk	+/- 0.015 L & W, +/- 0.010” Thk
30mm Hex Tile x 4mm Thk	+/- 0.010 L & W, +/- 0.010” Thk
30mm Hex Tile x 6mm Thk	+/- 0.010 L & W, +/- 0.010” Thk
30mm Hex Tile x 8mm Thk	+/- 0.010 L & W, +/- 0.010” Thk
